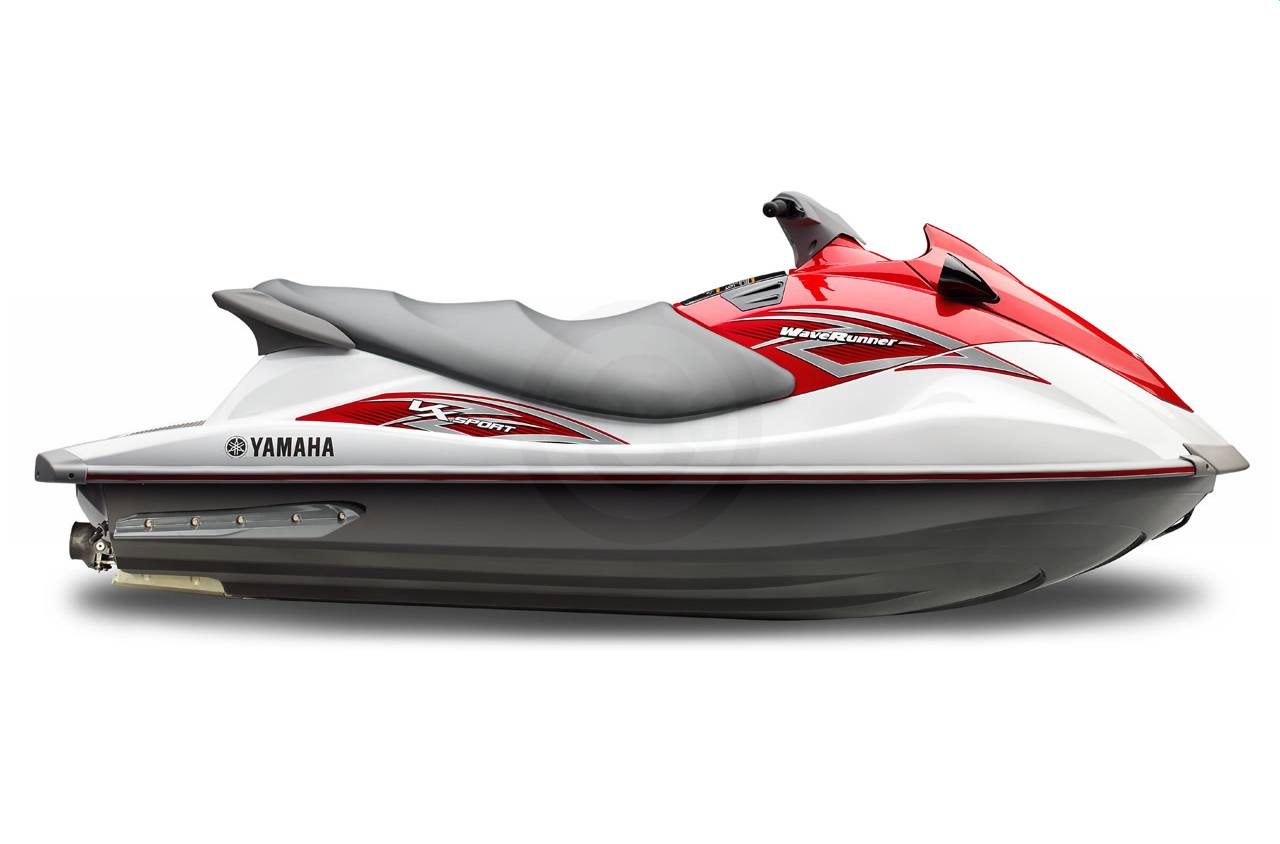

2010 Yamaha VX Sport
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Multi-function Electronic Information Center: Provides the operator a quick read on speed, RPM, fuel level, low fuel warning, low oil pressure warning, overheat warning, hour meter, check engine light with self diagnostic function.
  • 60 L of Total Storage: Includes a large bow storage locker and glovebox.
  • Comfortable One-piece Seat: Ergonomically-designed and contoured for added support. The extra-long seat is easily removed for quick access to the engine compartment.
  • Dual Concave Mirrors: Automotive style and convenience.
  • Extra Large Boarding Platform: Provides a stable platform for re-boarding.
  • Finger Throttle Lever: Provides added comfort while reducing hand fatigue.
  • Yamaha's Trademarked Visibility Spout®: A waterspout from the rear of the craft that improves the watercraft's conspicuity.
The Jet Pump Propulsion System
  • The VX pump design is one of the most efficient pump configurations ever, increasing stream velocity and thrust while decreasing cavitation and prop spin.
  • Stainless Steel Impeller Housing Liner: For high durability, the liner maintains accurate clearance tolerances between the impeller and the housing.
  • High Flow Intake Duct and Grate: The dynamic shape of these items directs water flow into the pump for better thrust, performance and hook up.
  • Cooling Water Intake Filter: Filters out harmful debris that could cause blockage of important cooling water passages.
  • Pumps are Manufactured with YDC30: A combination of zinc and copper alloys, developed by Yamaha marine engineers, that offers excellent corrosion protection.
The Ultra-Lightweight, High Strength Hull and Deck
  • The VX hull is designed to be light and strong.
  • Progressive, V-Hull with Integrated Bow Spray Guard: Provides excellent maneuverability, handling and comfort.
  • Sponson Design: Provides added straight-line comfort and an improved two and three-up riding experience.
Specifications
  • Engine Type: 4-Stroke, In-line, 4-Cylinder
  • Bore and Stroke: 76 x 58 mm
  • Displacement: 1052cc
  • Fuel: Regular unleaded
  • Lubrication: Dry sump
  • Cooling: Open Looped, water
  • Ignition: Direct Ignition
  • Compression Ratio: 11.4:1
  • Fuel Delivery: EFI (Electronic Fuel Injection)
  • Spark Plug: NGKCR9EB
  • Pump: 155 mm Axial flow single stage with reverse
  • Transmission: Direct Drive from Engine
  • Impeller: 3-Blade Stainless Steel
  • Fuel Capacity: 60L (13.2 gal)
  • Oil Capacity: 4.3L
  • Vehicle Capacity: 1,2,or 3 (240kg)
  • Storage Capacity: 60L (15.9 gal)
  • Hull Material: SMC (Sheet moulded compound)
  • Length: 3.27m (128.7")
  • Width: 1.17 m (46.4 in)
  • Height: 1.15 m (45.6 in)
  • Seat Length: 1.69 / 1.45 m (67 / 57 in)
  • Dry Weight: 334 kg (736 lbs.)
  • Colour(s): Heat Red
The Powerplant
  • The VX™ is powered by a Yamaha MR-1™ four-stroke engine. This is a compact, ultra-lightweight, four-cylinder, 1052cc, DOHC, 20-valve, liquid-cooled engine for class-leading performance.
  • Electronic Fuel Injection (EFI): Delivers a smooth, high power output with low fuel consumption and low exhaust emissions.
  • Specially Designed, One-piece Cylinder and Crankcase Assembly: Provides tremendous engine rigidity that's lighter and stiffer than two-piece designs.
  • Slant Detection Switch: Electronic switch stops engine and oil pumps immediately if watercraft becomes overturned, protecting motor from water ingestion.
  • Dry Sump Lubrication: Uses two engine oil pumps to deliver lubricated oil to each moving part with water-jacketed sump and oil backflow protection.
  • Yamaha Engine Management System (Y.E.M.S.): An integrated, computerized management system that controls and adjusts such functions as ignition timing, fuel injection mapping, engine diagnostics and OTS. The OTS function of Y.E.M.S. activates when the operator releases the throttle lever and attempts to steer the watercraft. This assists the operator in turning while the watercraft is decelerating.
  • Thermostatic and Pressure Controlled Cooling System: Water flow through the engine is controlled by a thermostat and pressure system and is maintained by a pressure control valve.
  • Corrosion Protection System: Sacrificial zinc anodes protect the engine from harmful galvanic corrosion. Stainless steel fasteners (nuts, bolts, hardware) provide a long service life.
  • Electronically Controlled, Variable Ignition Timing: For exact ignition advance control at all throttle positions and RPMs.

Specifications

Engine
Engine Type 4-Stroke, In-line, 4-Cylinder
Displacement 1052cc
Bore and Stroke 76mm x 58mm
Cooling Open-Looped, Water
Compression Ratio 11.4:1
Fuel System EFI (Electronic Fuel Injection)
Ignition Direct Ignition
Starting Electric
Dimensions
Dry Weight 334 kg (736 lbs.)
Fuel Capacity 60 l (13.2 gal.)
Height 1.15 m (45.6 in.)
Length 3.27m (128.7 in.)
Width 1.17 m (46.4 in.)
Oil Capacity 4.3 l
Rider Capacity 1,2,or 3 (240kg)
Storage Capacity 60 l (15.9 gal.)
Drive Unit
Impeller 3-Blade, Stainless Steel
Gear Ratio 21:31
Pump 155mm Axial Flow Single Stage with Reverse
Transmission Direct Drive from Engine
General
Speedometer Electronic
Tachometer Electronic
Mirrors Dual Concave Mirrors
Hull Type SMC (Sheet moulded compound)
Color Heat Red

Compare Models

 Print








Year 2010
Manufacturer Yamaha
Model VX Sport
Style Recreation
Dimensions
Dry Weight 334 kg (736 lbs.)
Fuel Capacity 60 l (13.2 gal.)
Height 1.15 m (45.6 in.)
Length 3.27m (128.7 in.)
Width 1.17 m (46.4 in.)
Oil Capacity 4.3 l
Rider Capacity 1,2,or 3 (240kg)
Storage Capacity 60 l (15.9 gal.)
Drive Unit
Impeller 3-Blade, Stainless Steel
Gear Ratio 21:31
Pump 155mm Axial Flow Single Stage with Reverse
Transmission Direct Drive from Engine
Engine
Engine Type 4-Stroke, In-line, 4-Cylinder
Displacement 1052cc
Bore and Stroke 76mm x 58mm
Cooling Open-Looped, Water
Compression Ratio 11.4:1
Fuel System EFI (Electronic Fuel Injection)
Ignition Direct Ignition
Starting Electric
General
Speedometer Electronic
Tachometer Electronic
Mirrors Dual Concave Mirrors
Hull Type SMC (Sheet moulded compound)
Color Heat Red
Warranty

Current Promotions

There are currently no promotions available for this product.
