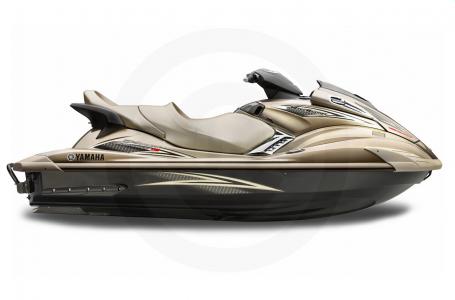

2010 Yamaha FX Cruiser HO
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Combining a new compact 1.8 liter high output engine with a NanoXcel hull and deck and a three point contact system, the class leading fuel efficiency FX Cruiser HO delivers instantaneous acceleration and exceptional responsiveness. All while keeping you comfortable and relaxed.

  • Yamaha Cruiser Seat: Yamaha's innovative Cruiser seat and handholds provide excellent comfort for the rear passenger.
  • Five-step Adjustable Tilt Steering System: Allows the rider to adjust the steering column angle from 55 degrees to 35 degrees.
  • Multi-function Information Center: Provides the operator a quick read on speed, RPM, fuel level, low fuel warning, low oil pressure warning, battery voltage, overheat warning, hour meter, check engine light with self-diagnostic function and the industry's only audible warning system.
  • Industry's First Remote Controlled Transmitter: With the touch of a button on Yamaha's innovative remote controlled transmitter, you can activate and deactivate the FX Cruiser High Output's digital security system and all-new Low RPM Mode from up to 30 feet away.
  • Foot Chocks: The foot chocks, along with the Cruiser seat and handlebars, create a three-point contact system that reduces tension on the driver's arms and legs.
  • Low RPM Mode™: Also with the touch a button on the remote transmitter, the top speed of the FX Cruiser High Output is reduced by nearly 30 percent.
  • Yamaha Security System: This security system that can be activated with the touch of a button ensures that no one starts the FX Cruiser High Output without your permission.
  • 89.6L of Storage, including a large cooler, rear storage tub and glove box.
  • Glove Box : The industry's first self-draining beverage holders.
  • Extra Large Boarding Platform: Provides a stable platform for re-boarding.
  • Stylish pull-up cleats provide easy tie-up at the dock, then tuck neatly away until you need them.
  • Reboarding step makes remounting the craft more comfortably after a quick swim or for water sport enthusiast.
  • Yamaha's exclusive No Wake Mode: makes cruising through no-wake zones a breeze. Once engaged, the no-wake mode moves the engine's RPMs to an optimal speed, approximately 5 mph, for efficiently navigating through a no-wake zone. Once through, the driver simply applies throttle and the no-wake mode is released.
  • Yamaha's exclusive Cruise Assist: The industry's first system that allows the driver to set and hold a particular speed while maintaining a comfortable riding position with the throttle. Once the speed is set, the driver can increase or decrease the speed through the simple push of a button. When the throttle is disengaged the system shuts off.
  • Water-tight storage & beverage holder on either side of the steering column enable you to reliably store and access what you need when cruising.
  • Dual Mirrors: Automotive style and convenience.
  • Finger Throttle Lever: Provides added comfort while reducing hand fatigue.
  • Yamaha's Trademarked Visibility Spout®: A waterspout from the rear of the craft that improves the watercraft's conspicuity.
The Powerplant
  • The FX Cruiser HO is powered by Yamaha's new 1812cc, high output engine which is the largest displacement engine in the PWC industry. This new generation of power balances high performance, economy, environmental awareness and the reliability Yamaha is famous for.
  • Electronic Fuel Injection (EFI): Four individually adjustable throttle bodies, throttle position sensor (TPS) and intake air pressure and air temperature sensors supply the optimum air/fuel mixture. The results are a smooth, high power output with low fuel consumption and low exhaust emissions.
  • Specially Designed, One-piece Cylinder and Crankcase Assembly: Provides tremendous engine rigidity that's lighter and stiffer than two-piece designs.
  • Slant Detection Switch: Electronic switch stops engine and oil pumps immediately if watercraft becomes overturned, protecting motor from unwanted water ingestion.
  • High Volume Intake Box: With water repellent air filter and flame arrestors.
  • Dry Sump Lubrication: Uses two engine oil pumps to deliver lubricated oil to each moving part with water-jacketed sump and oil backflow protection.
  • Yamaha Engine Management System (Y.E.M.S.): An integrated, computerized management system that controls and adjusts such functions as ignition timing, fuel injection mapping, engine diagnostics and off throttle steering. The OTS function of Y.E.M.S. activates when the operator releases the throttle lever and attempts to steer the watercraft. This assists the operator in turning while the watercraft is decelerating.
  • Independent Water-jacketed Exhaust Manifolds with Collector: Achieves high power while keeping noise and exhaust heat under control.
  • Thermostatic and Pressure Controlled Cooling System: Water flow through the engine is controlled by a thermostat and pressure system and is maintained by a pressure control valve.
  • Corrosion Protection System: Sacrificial zinc anodes protect the engine from harmful galvanic corrosion. Stainless steel fasteners (nuts, bolts, hardware) provide a long service life. Cylinders, cases and heads are all treated with a durable oxide coating to form a barrier between corrosion and expensive engine parts.
  • Electronically Controlled, Variable Ignition Timing: For exact ignition advance control at all throttle positions and RPMs.
The Jet Pump Propulsion System
  • The FX Cruiser High Output's 155mm hyper-flow jet pump propulsion system with three-blade stainless steel impeller is designed to maximize water flow for high performance. The FX pump configuration provides excellent hook-up and smooth acceleration.
  • Quick Shift Trim System (Q.S.T.S.): Mechanically operated, this system offers instant change in the attitude of the watercraft while underway allowing for tighter turns or quicker acceleration on plane, as the rider prefers. Q.S.T.S. offers 24 degrees of total trim range.
  • High Flow Intake Duct and Grate: The dynamic shape of these items directs water flow into the pump for better thrust, performance and hook up.
  • Pumps are Manufactured with YDC30: A combination of zinc and copper alloys, developed by Yamaha marine engineers, that offers excellent corrosion protection.
  • Yamaha's exclusive Reverse Traction Control : This unique automatic electronic control is programmed to optimize the jet pump efficiency when moving in reverse.
  • Stainless Steel Impeller Housing Liner: For high durability, the liner maintains accurate clearance tolerances between the impeller and the housing.
The Ultra-Lightweight, High Strength Hull and Deck
  • The NanoXcel Hull and Deck: The FX Cruiser HO features the world's first hulls and decks manufactured through the use of cutting edge nanotechnology. Yamaha's new NanoXcel ultra-lightweight, high strength material reduces the weight of the hull, deck and liner by 25% and provides performance gains in acceleration, top speed and handling. Additionally, the NanoXcel material offers a shinier, gem-like finish which reduces surface tension on the water, providing a more nimble, responsive ride.
  • Progressive, Stepper Draft V-Hull with Integrated Bow Spray Guard: Provides excellent maneuverability, handling and comfort.
  • Performance Sponson Design: Provides added straight-line comfort and an improved two and three-up riding experience.
Specifications
  • Engine Type: 4-Stroke, In-line, 4-Cylinder
  • Bore and Stroke: 86 x 78 mm
  • Displacement: 1812cc
  • Fuel: Regular Unleaded
  • Lubrication: Wet sump
  • Cooling: Open-Looped, Water
  • Ignition: Direct Ignition
  • Compression Ratio: 11.0:1
  • Fuel Delivery: EFI (Electronic Fuel Injection)
  • Pump: 155mm, Axial Flow
  • Transmission: Direct Drive from Engine
  • Impeller: 3-Blade, Stainless Steel
  • Fuel Capacity: 70L (18.5 US gal)
  • Oil Capacity: 4.2L (1.1 US gal )
  • Vehicle Capacity: 1-3 person/ 240kg (529lbs)
  • Storage Capacity: 100L (26.4 gal )
  • Hull Material: NanoXcel High Compression Molded Compound
  • Length: 3.37 m
  • Width: 1.23 m
  • Height: 1.24m
  • Dry Weight: 365 kg (804 lbs )
  • Colour(s): Bronze Metallic

Specifications

Engine
Engine Type 4-Stroke, In-line, 4-Cylinder
Displacement 1812cc
Bore and Stroke 86 x 78mm
Cooling Open-Looped, Water
Compression Ratio 11.0:1
Fuel System EFI (Electronic Fuel Injection)
Ignition Direct Ignition
Starting Electric
Dimensions
Dry Weight 365 kg (804 lbs.)
Fuel Capacity 70 l (18.5 US gal.)
Height 1.24m
Length 3.37 m
Width 1.23 m
Oil Capacity 4.2 l (1.1 US gal.)
Rider Capacity 1-3 person/ 240kg (529 lbs.)
Storage Capacity 100 l (26.4 gal.)
Drive Unit
Impeller 3-Blade, Stainless Steel
Pump 155mm, Axial Flow
Transmission Direct Drive from Engine
General
Speedometer Electronic
Tachometer Electronic
Mirrors Dual Mirrors
Hull Type NanoXcel High Compression Molded Compound
Color Bronze Metallic

Compare Models

 Print








Year 2010
Manufacturer Yamaha
Model FX Cruiser HO
Style Performance
Dimensions
Dry Weight 365 kg (804 lbs.)
Fuel Capacity 70 l (18.5 US gal.)
Height 1.24m
Length 3.37 m
Width 1.23 m
Oil Capacity 4.2 l (1.1 US gal.)
Rider Capacity 1-3 person/ 240kg (529 lbs.)
Storage Capacity 100 l (26.4 gal.)
Drive Unit
Impeller 3-Blade, Stainless Steel
Gear Ratio
Pump 155mm, Axial Flow
Transmission Direct Drive from Engine
Engine
Engine Type 4-Stroke, In-line, 4-Cylinder
Displacement 1812cc
Bore and Stroke 86 x 78mm
Cooling Open-Looped, Water
Compression Ratio 11.0:1
Fuel System EFI (Electronic Fuel Injection)
Ignition Direct Ignition
Starting Electric
General
Speedometer Electronic
Tachometer Electronic
Mirrors Dual Mirrors
Hull Type NanoXcel High Compression Molded Compound
Color Bronze Metallic
